Siemens - Klangfilm

Introduction / Overview

Klangfilm History

Moving Coil MC preamps

KLV Eurodyn Rack Amps

KLV Preamps

Output Transformers
Speakers
Siemens 2000 Amps

6SELA Preamps

6SELA Power Amps

6SELA Tuners

Spare Parts

Typical Tubes

Racks

Miscellanous

Projects

Eugen Bauer


Siemens / Haufe transformers


* From the parts with askerisk I have singles. I offer them for trade or will buy yours!

MORE INPUT TRANSFORMERS FROM OTHER BRANDS HERE!

Please ask me if you need transformers for your MC cartridge!




All Siemens / Haufe transformers are mu metal shielded. They all have the yellow or orange tape where their type number is indicated.

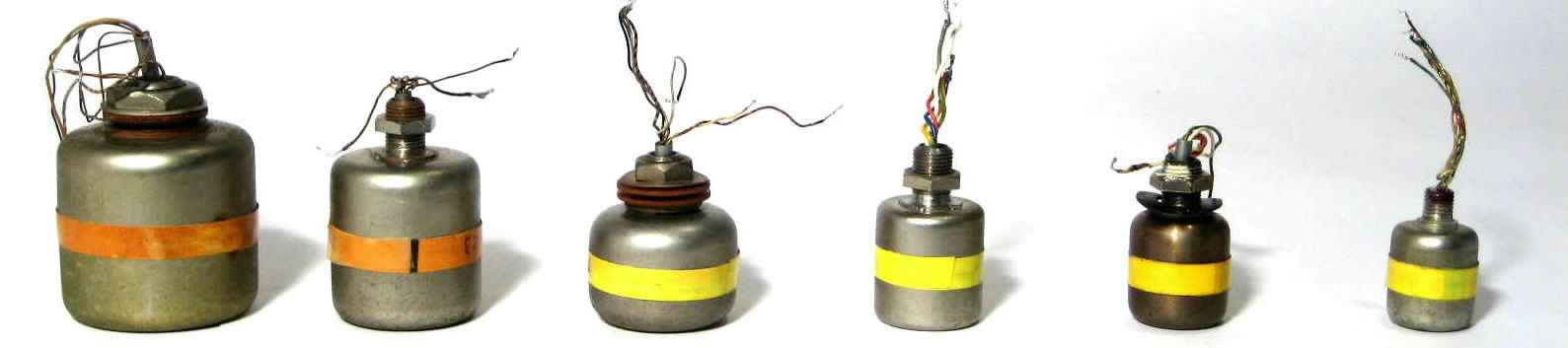

Size Overview:


               A               B                 C                 D                E                F

      38x36mm      29x33mm      30x22mm        21x23mm       20x22mm     17x20mm

Dimensions given as diameter x height. Beneath the tape the can can be split into two parts.

  Input Transformers
  Type Picture Found in primary DC secondary DC

ratio

Comments and Suggestions

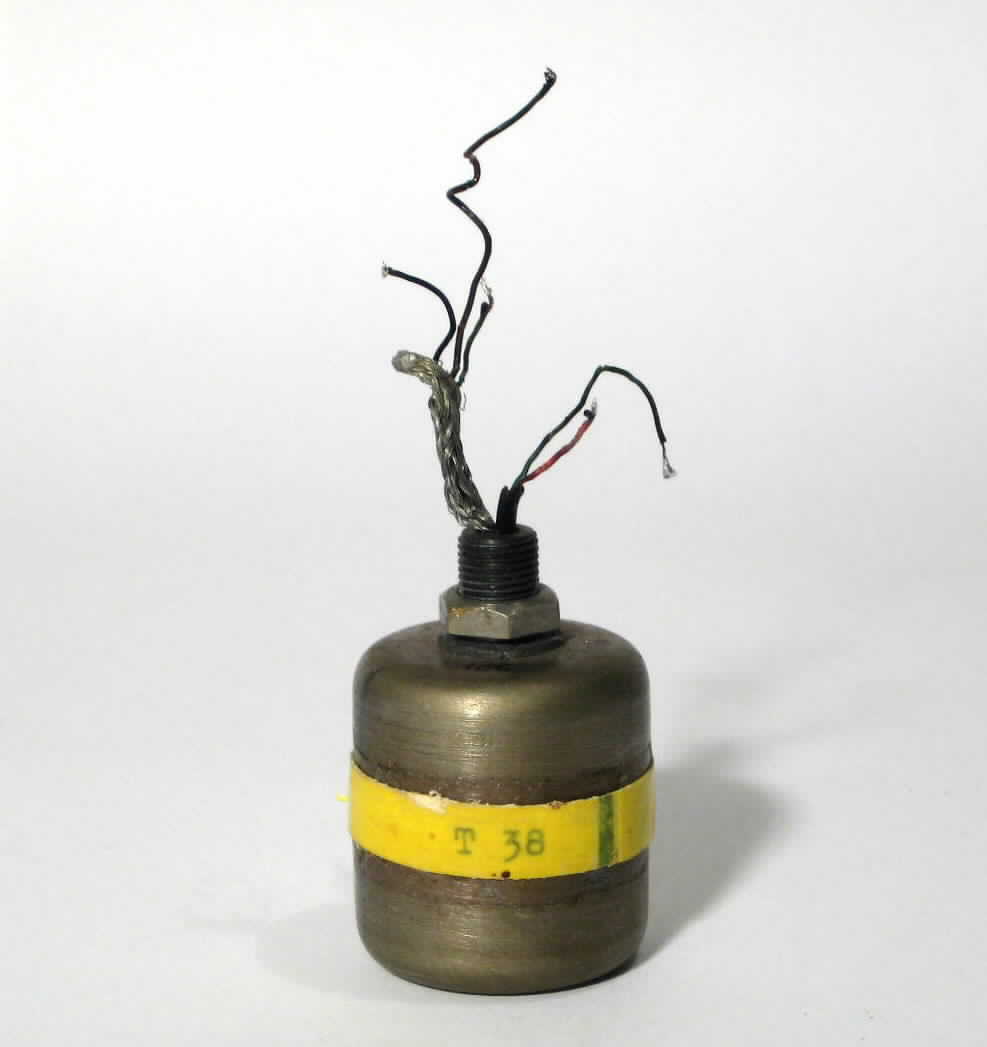

T38

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110

????

100 Ohms

7 kOhms

1:12



22dB

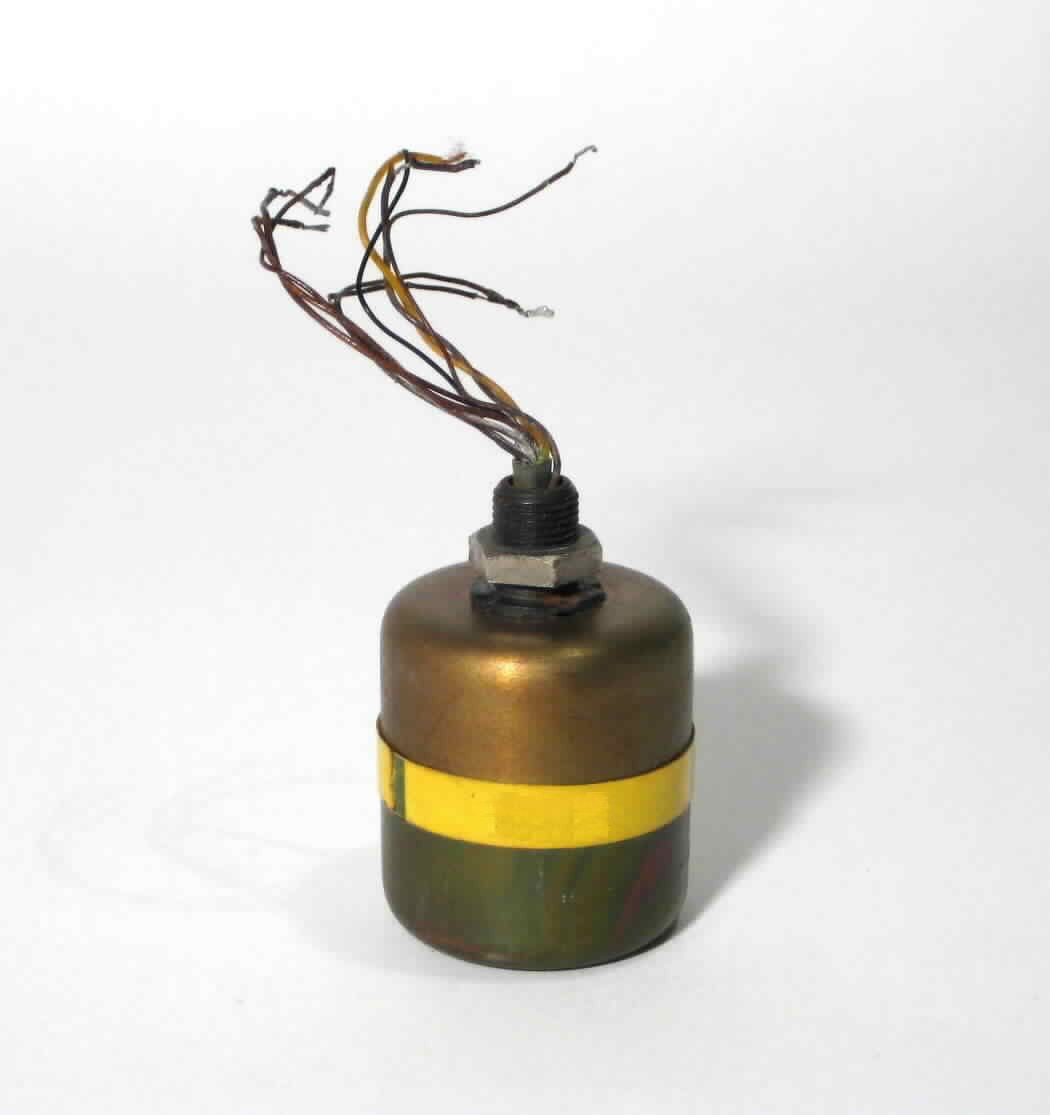

  Size: B. Very good input transformer.

  Very versatile input impedance that will well match almost any MC cartridge.

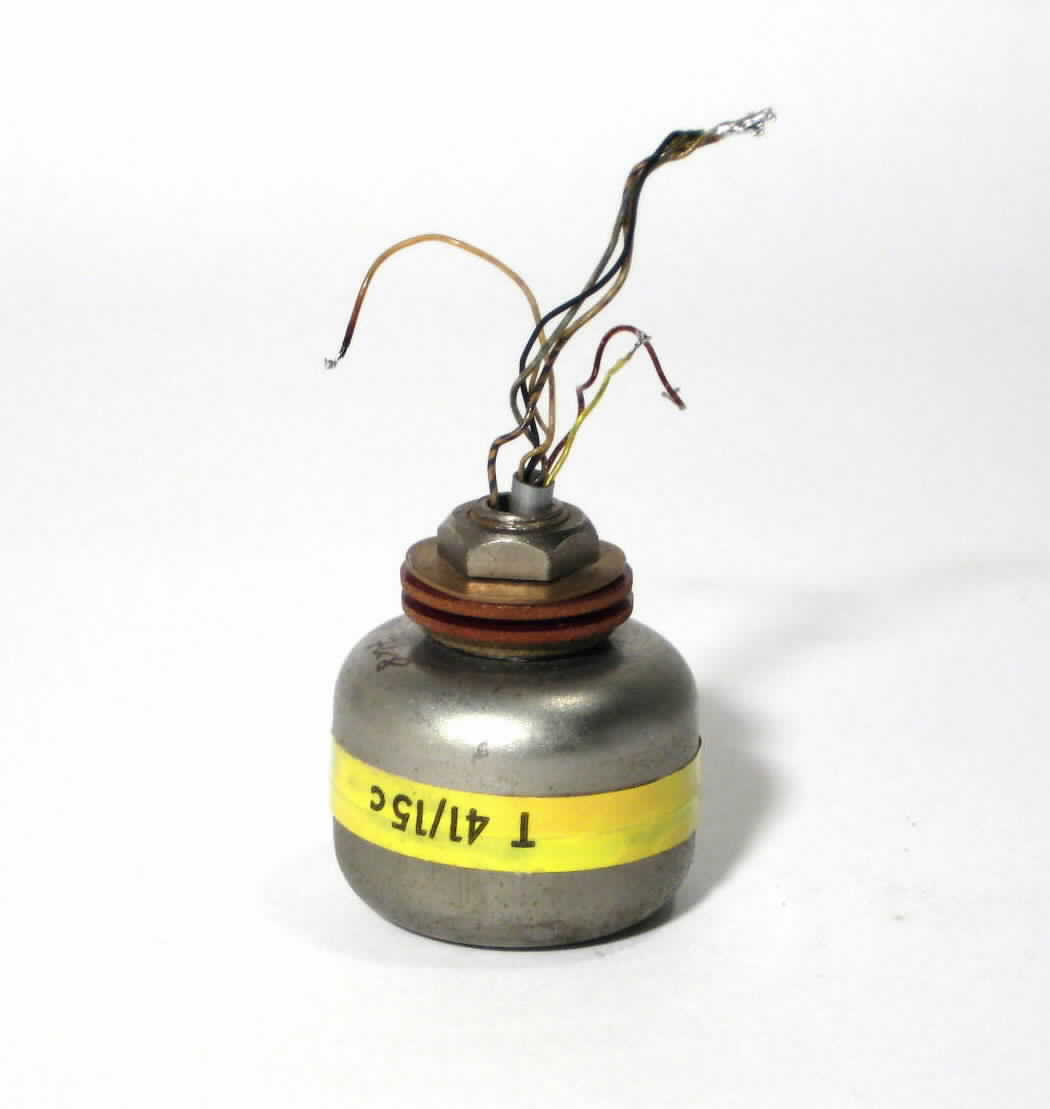

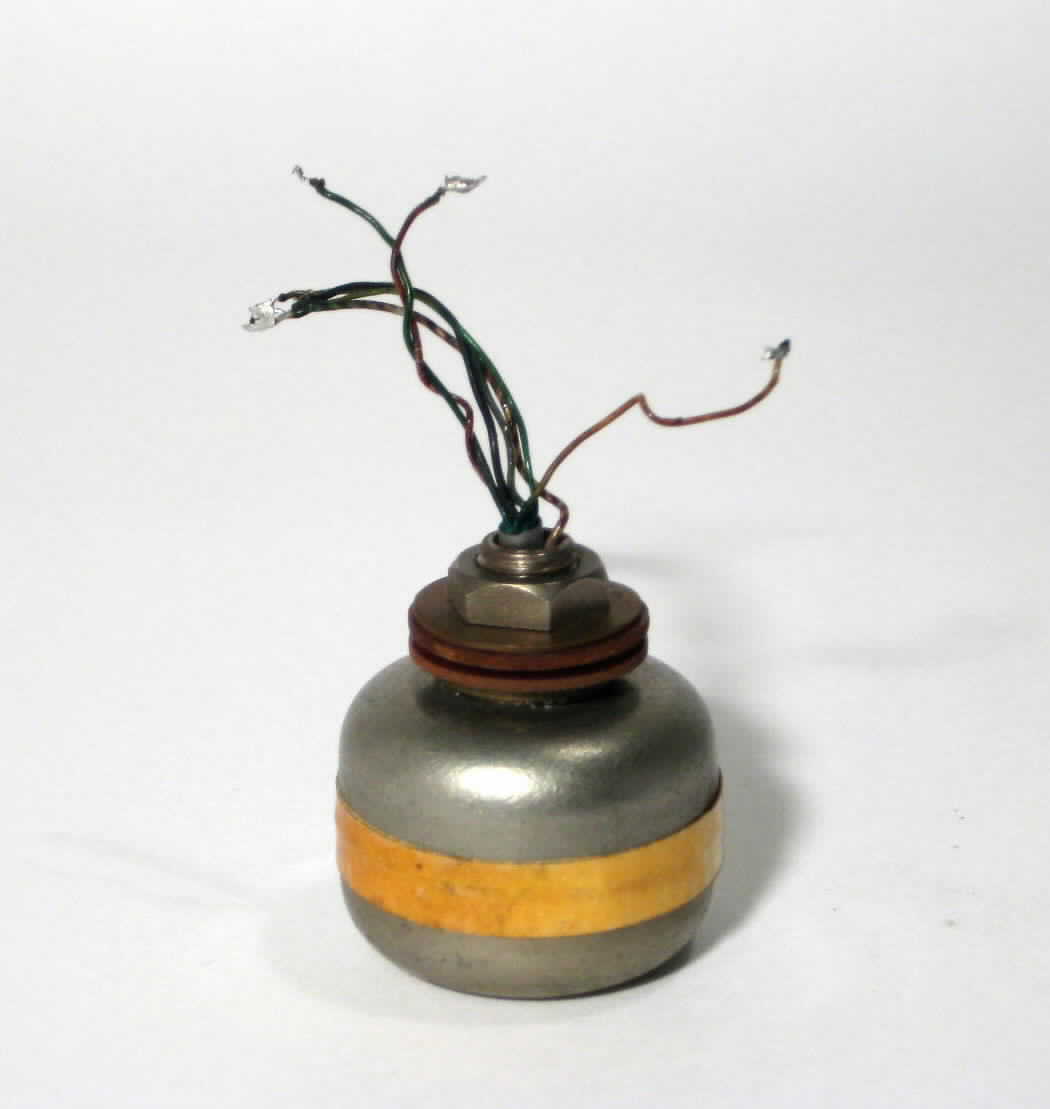

T41

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110

many mic inputs in 6SELA

400 Ohms

8 kOhms

1:12



22dB

  Great with Denon DL-103. Primary ranges between 350 Ohms and 450 Ohms, secondary between 7.5 and 8.5 kOhms. Good matching is necessary. Size C.

Click here to see different T41s.



T42

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110

foto cell inputs in several amps

3 Ohms

1.65 kOhms

1:20



26dB

  Size: C. Extremely low input impedance. Not too versatile, but very nice for very low Z cartridges with  less sensitive preamps.



T54/5c

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110

KLV 004

110 Ohms

??? kOhms

1:30



30dB

  Size: B. Input transformer with very high amplification.

  Slight lacks in the bass and high frequency range (about -4dB at 100Hz/10kHz) require compensa-tion in RIAA stage.

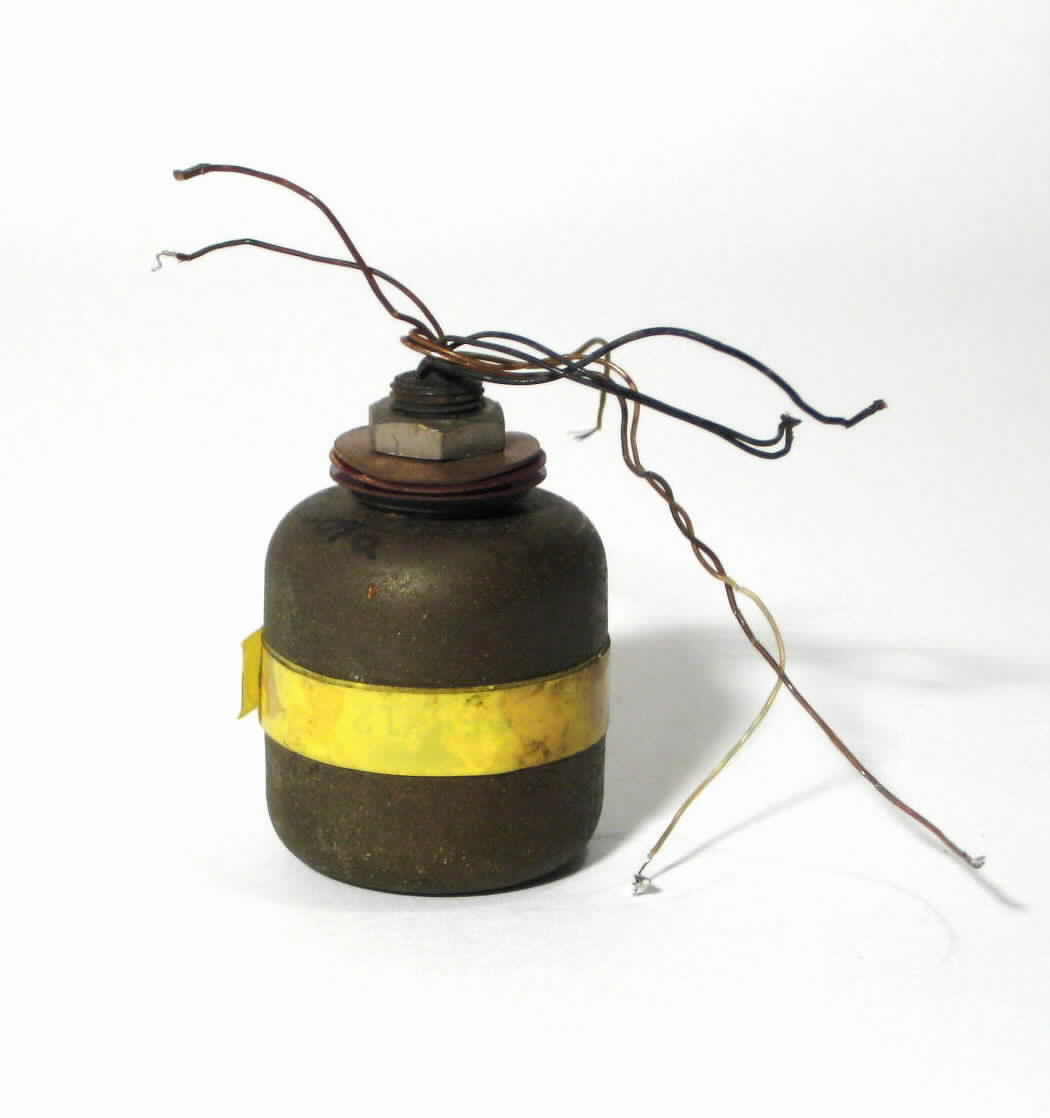

T55/12*

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110 T55 KLV204 EMT T890 T210

KL-V204a

KL-V004

28 Ohms

1.65 kOhms

1:12



22dB

  Size: 29x31mm = slightly smaller than B!

  Very good frequency response on curve tracer.*

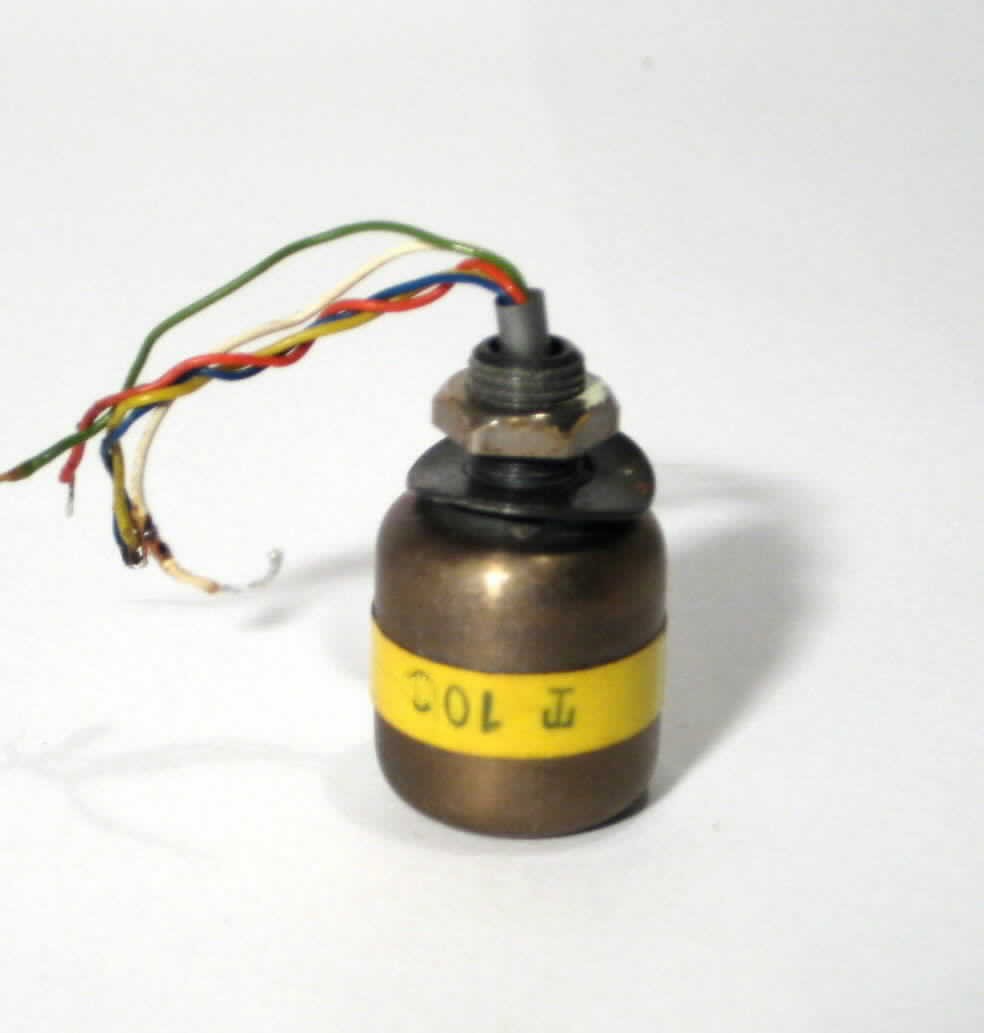

T108

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T108 T42 T41 15C T110 EMT T890 T210

????

150 Ohms

3.2 kOhms

1:10



20dB

  Size: E. Very nice transformer. Slightly louder in the high. Rising 4.5dB at 22kHz (-3dB = 37kHz !!).

  Great bass response (-3dB at 10Hz).

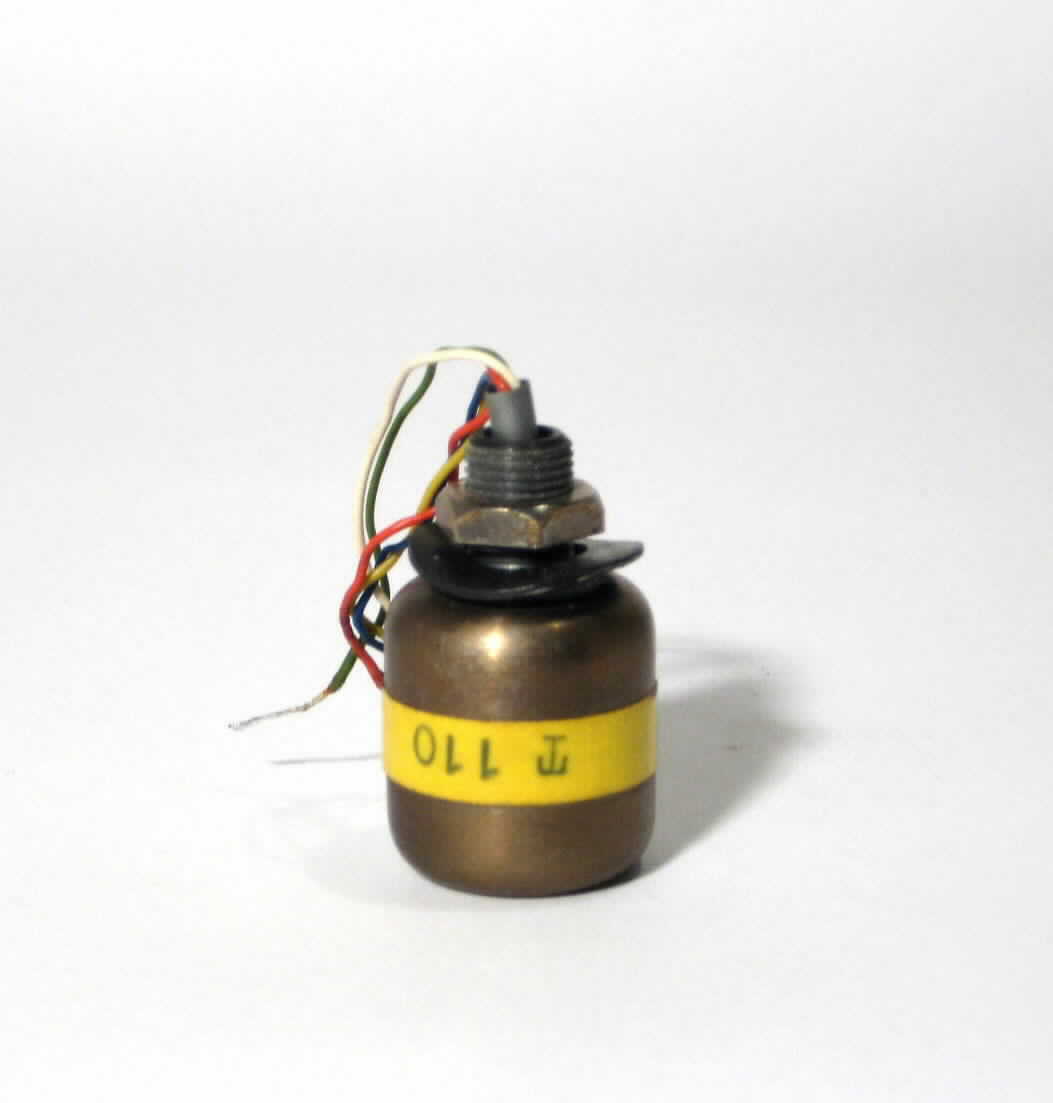

T110

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110 EMT T890 T210

several Bauer amps

28 Ohms

8 kOhms

1:15



24dB

  Size: E. Absolutely great perfor-ming transformer. Great bass response.

  Great match for EMT Tondose TSD 15, XSD 15, TMD 25 (all 24 Ohms) and OFS 25.

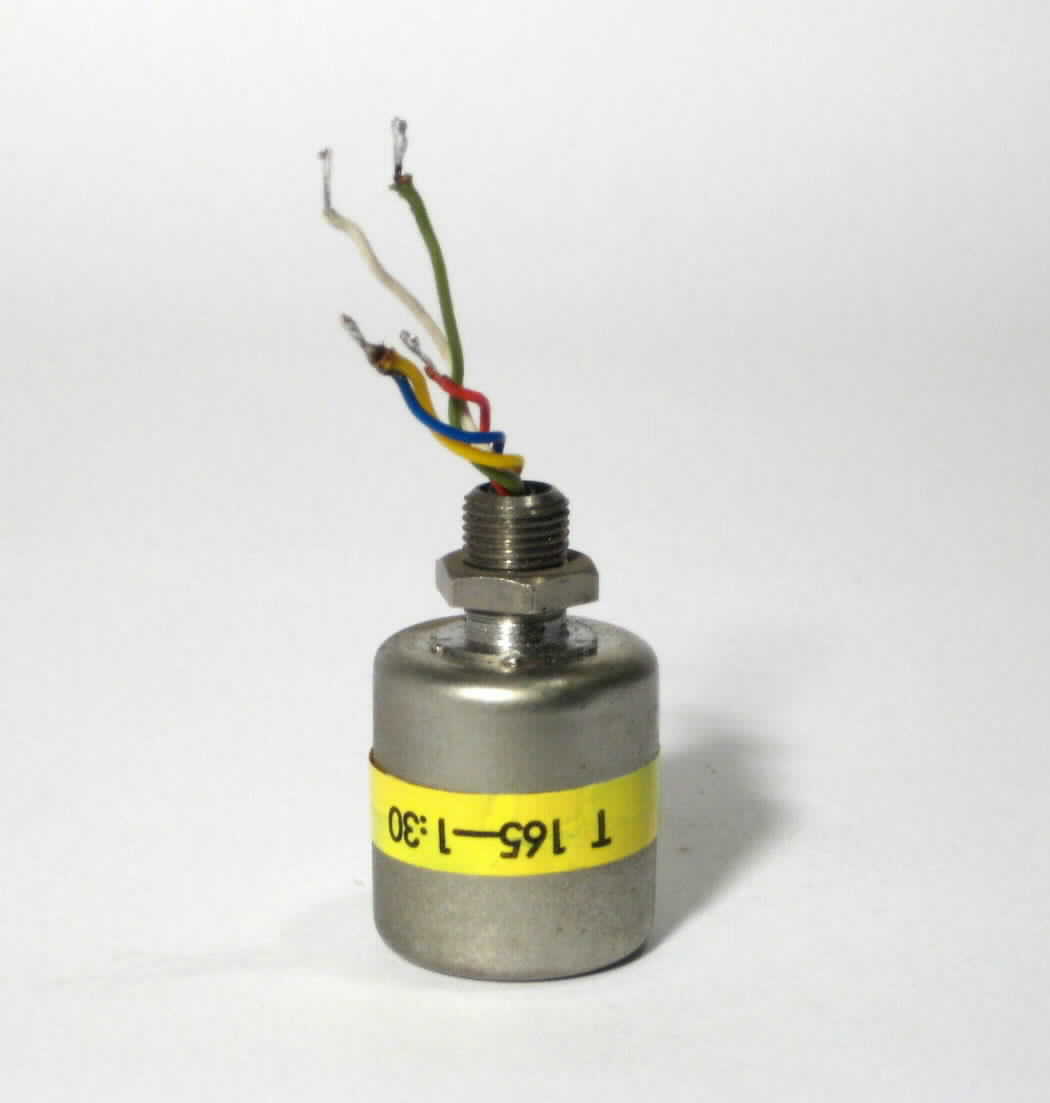

T165

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T165 EMT T890 T210

????

28 Ohms

7.7 kOhms

1:30



30dB

 Size: D. Great transformer. High amplification.

 I don't remember where I found that one.

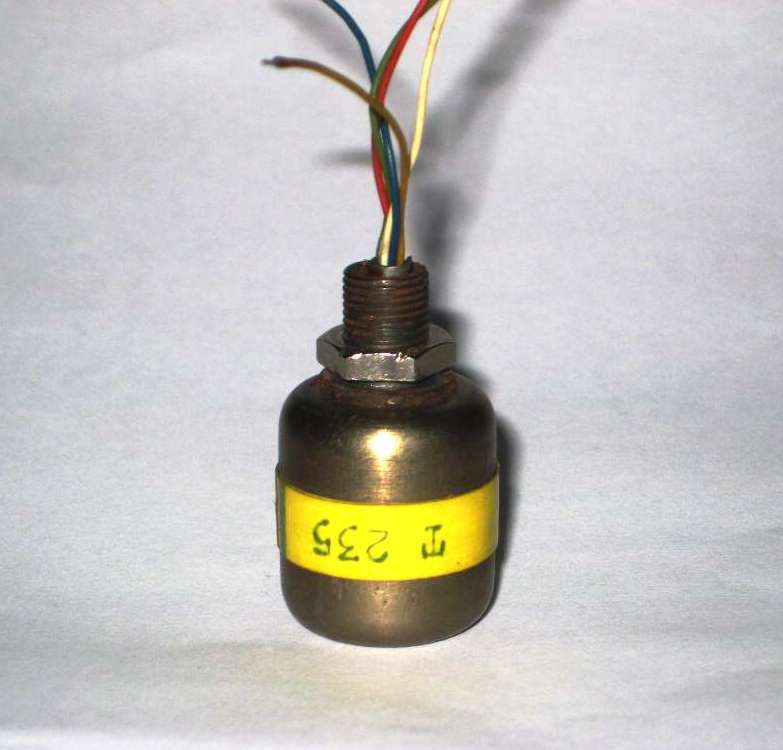

T235

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T165 EMT T890 T210

????

142 Ohms

6.5 kOhms

1:19



25dB

  Size: D. Great transformer. Unfortunately I only have a single one.*



T311

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T165 EMT T890 T210

????

67 Ohms

3 kOhms

1:14



23dB

  Size: F. Very good transformer. Haufe rated as 25dB, but measures only 23dB.

 Good frequency response. 0.78% Distortion at 1kHz.

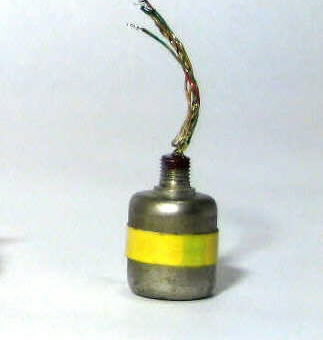

T4365

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T4365

????

68 Ohms

3.4 kOhms

1:14



23dB

  Size: F. Outstanding frequency response - especially bass reponse is perfect!  Perfect match for EMT Tondose TSD 15, XSD 15, TMD 25 (all 24 Ohms) and OFS 25.

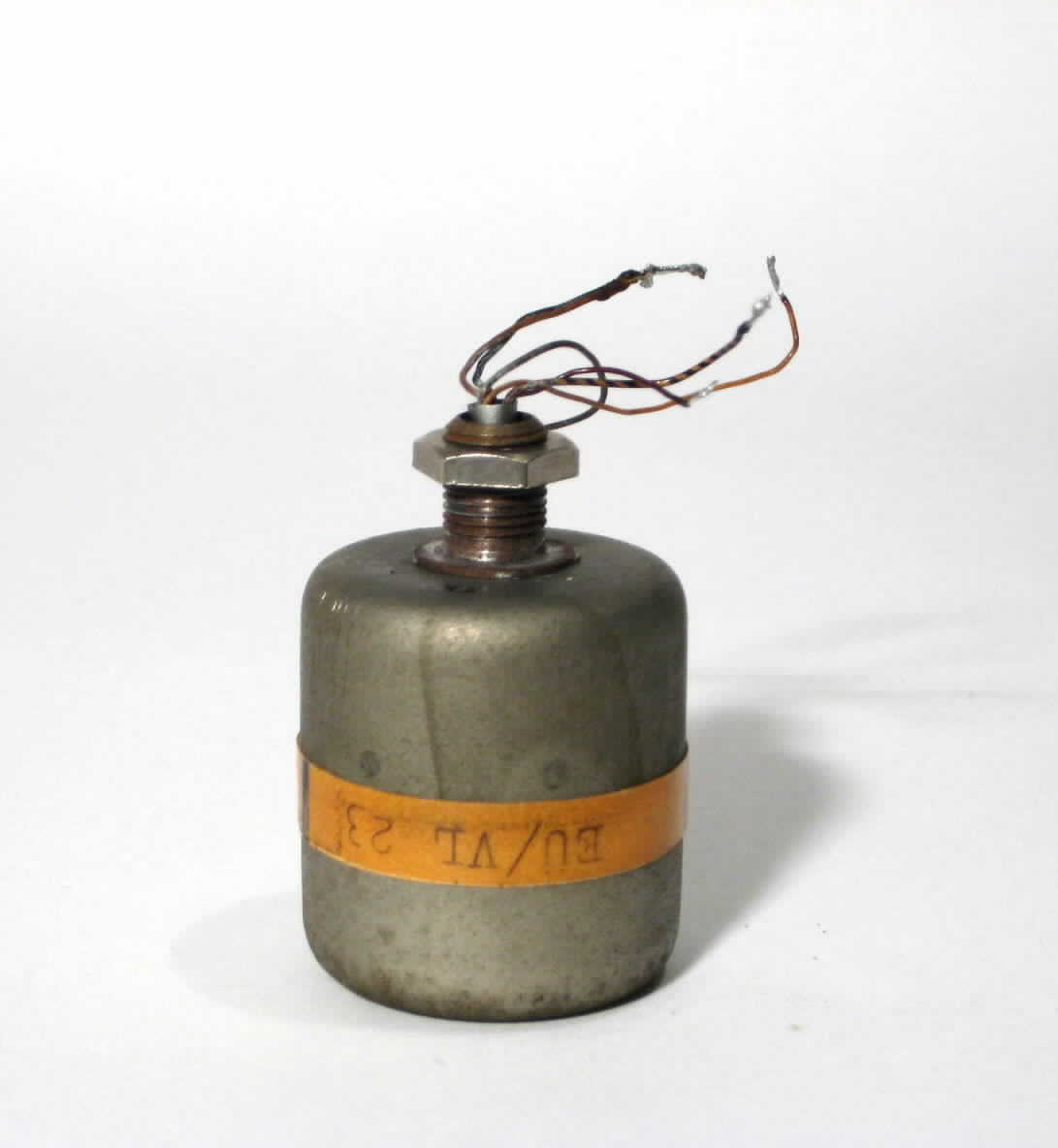

EÜ/VL

  23

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C EÜ/VL EMT T890 T210

????

3.2 Ohms

2.5 kOhms

1:30



30dB

  Size: B. This is a great transformer for the Ortofon SPU.

  Very high amplification, but only good with very low impedance cartridges.

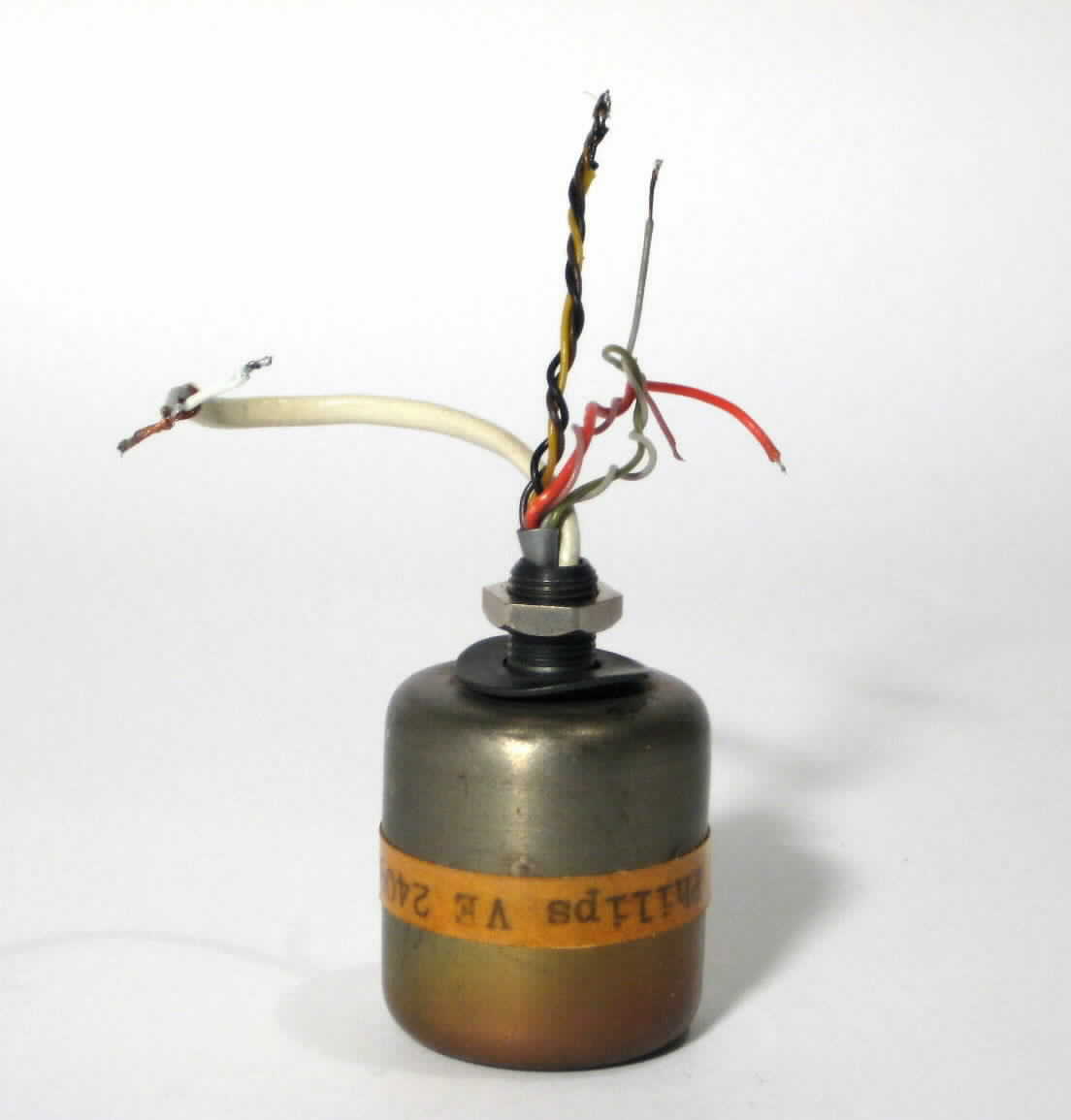

VE 2409

Philips

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil Philips VE2409

????

2x17 Ohms

2.6 kOhms

1:25



28dB

  Size: B. Great and very versatile! Made bei Haufe for Philips. 2 primary windings with high amplification allow perfect match to almost any MC cartridge.



  Balancing, Output and Interstage Transformers
  Type Picture Found in primary DC secondary DC

ratio

Comments and Suggestions



T55/3.5

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110

KLV 004

1640 Ohms

326 Ohms

5:1



-14dB

  Size: B. Output transformer for low impedance conversion.

  Pretty similar to T55/2.



T55/2

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110

KLV 002

KLV 006

KLV 007

1600 Ohms

215 Ohms

5:1



-14dB

  Size: B. Output transformer for low impedance conversion.

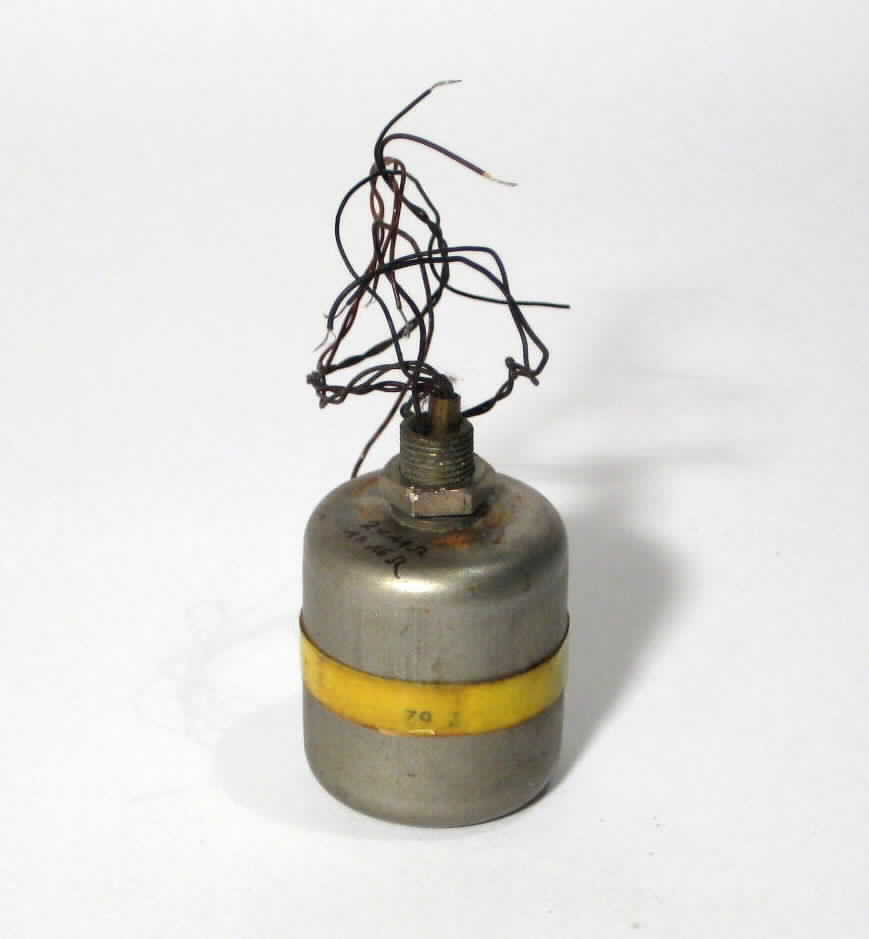

T62

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110

?????

2x 11 Ohms

16 Ohms

1:1



0dB

  Size: B. Very good as interstage transformer for push pull tube power amps.

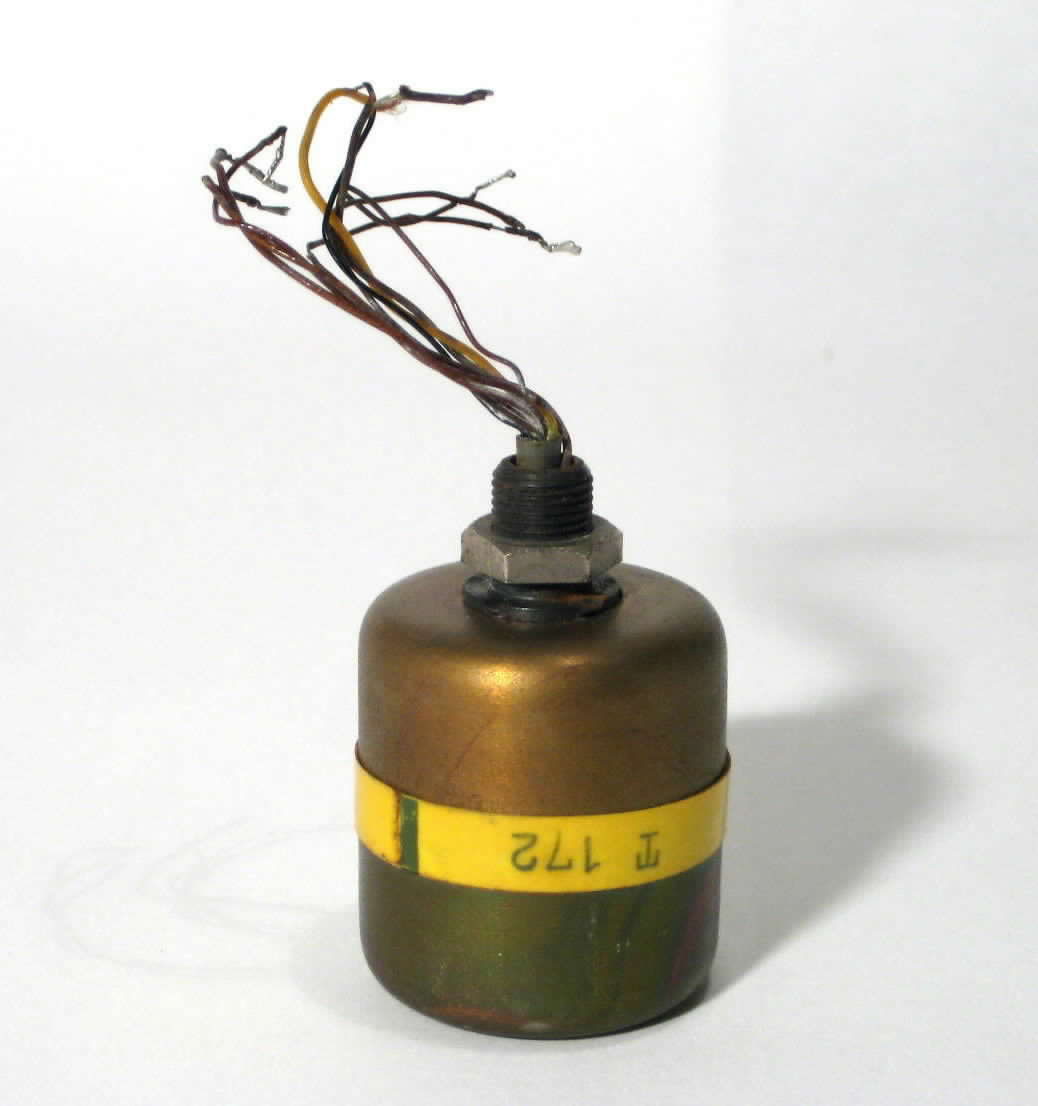

T172

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110

Input xformer in 6SELA power amps

2x 165 Ohms

417 Ohms

1:1



0dB

  Found i.e. in 6SELA 2805 EL34 power amp. Size: B

  Also found with 475 Ohms to 2x 175 Ohms.

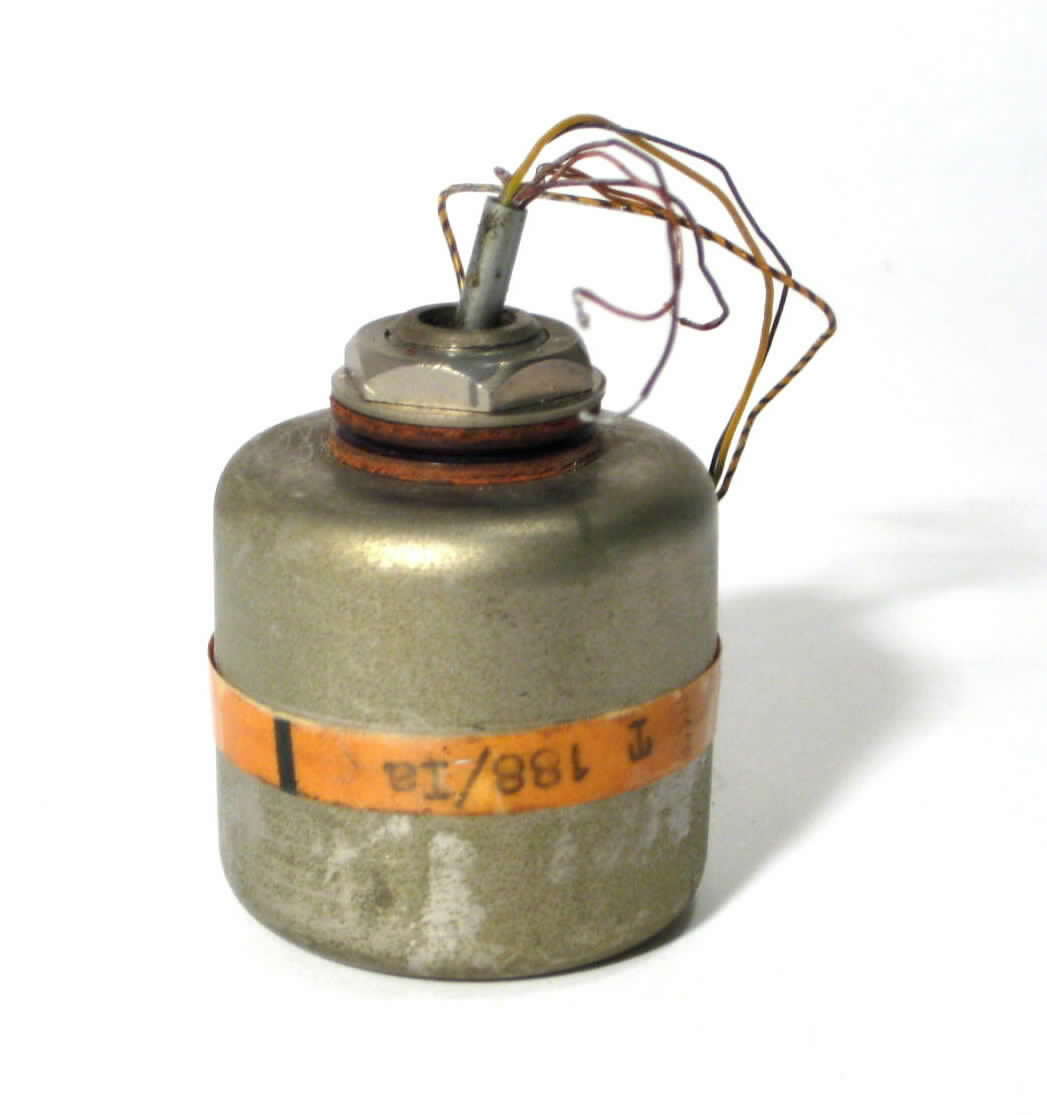

T188

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110

6SELA

2154

0-65-158 Ohms

25 Ohms

1:1



0dB

  Size: A. THE big output transformer from the 6SELA2154 microphone and mixer preamp. Great!

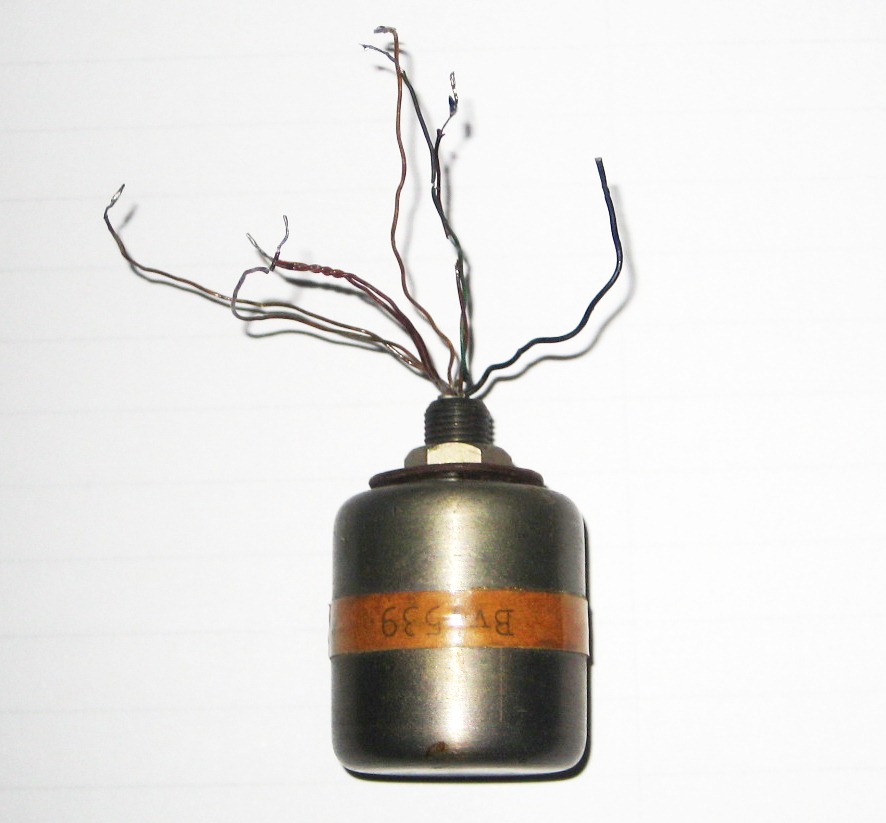

BV. 539

Siemens Klangfilm Haufe input transformer mu metal shielded Phono MC Movin Coil T188 T42 T41 15C T110

?????

6-6 Ohms

12 Ohms

1:1



0dB

  Size: B. Very good as interstage transformer for push pull tube power amps.*
